Marking Machine 1230W DC40V Tubular Solenoid

Name: Marking Machine 1230W DC40V Tubular Solenoid
Brand: DASON
Price: 3 USD

China Marking Machine 1230W DC40V Tubular Solenoid wholesale

Brand Name : DASON

Model Number : DASON-T3039L

Certification : ISO9001

Place of Origin : China

MOQ : 500

Price : 3~4USD

Payment Terms : T/T

Supply Ability : 300000

Delivery Time : 30day

Packaging Details : Carton packing

Port Size : customized

Stroke : 4mm

purpose : Automatic electrical appliances

Specification and size : 30*39（mm）

Initial suction : 4（N）

Temperature : High Temperature, Low Temperature

Contact Now

Tubular Solenoid DC40V Marking Machine Solenoid Medical Equipment Solenoid

Product parameters:
Product parameters:
1. Name Model (P/N): marking machine solenoid DSN-3039T-01
2. Standard Test Conditions :
2.1 Temperature range: -20 ° C ~ 65 ° C
2.2 Relative humidity: 5% to 60% RH
2.3 rated voltage: DC40V
2.4 power consumption (wattage): 1230W (DC40V, R = 1.35Ω ± 10%)
2.5 OPERATION CYCLE: one pulse duration is 5.2ms
4. Electrical characteristics
4.1 Working voltage: DC40V±10%
4.2 Potence: 5mm thrust: ≥1000gf (DC40V)
4.3 Insulation resistance: DC500V, ≥50MΩ (between coil and skeleton)
4.4 High voltage: AC700V 50/60Hz-1 sec, leakage current up to 1 mA (between coil and housing)
5.0 Life (biometry): 200,000 times or more in normal use.

Weight		Packaging Details		Shipment Details
N.W.(KG)	G.W.(KG)	Product Size(mm)	Carton Box Size(mm)	20GP	40GP	40HQ
0.065	0.05	30*39	350310180	/	/	/

T2551solenoid application:
Pure copper design, high temperature resistance, long life.

Instructions for use and installation:
1. The power line of the electromagnet is powered on regardless of the positive and negative connection. The input voltage is DC12 V, the current is 1.25a, and the power is 16.9 W;
2. When the switch is connected to the power supply, the push head of the sliding rod at the tail end of the electromagnet is pushed out by 12mm. After the power is cut off, the sliding rod is reset by the internal spring force;
3. Installation dimension diagram:

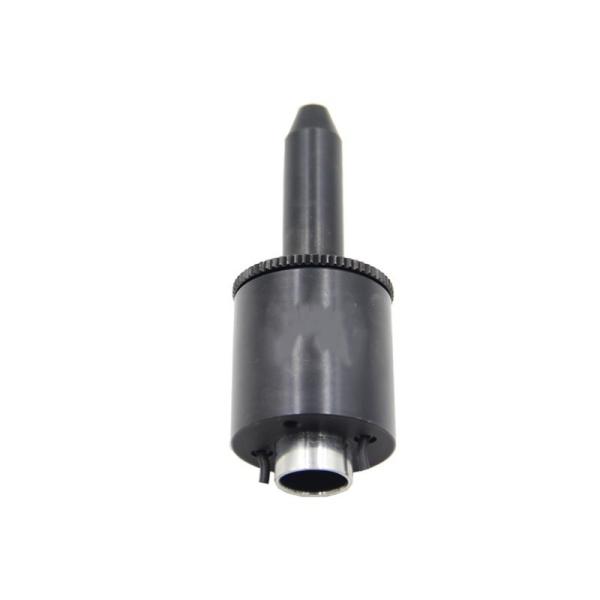

Marking Machine 1230W DC40V Tubular Solenoid

Materials

High quality pure iron house, residual magnetism

High standard copper wire, heating stability, good insulation, efficient conductivity

IP65 waterproof class, insulation class: B

Structure

Simple structure design, durable and reliable

Buckle and rubber sleeve parts reduce abrasion, extend service life

Installation and operation
Threaded mounting, easy to install and fix
U-shaped plunger for easy load connection

Supply Ability

Supply Ability:5000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details

Product Size: 25*51 (mm)
Carton Box Size: 350*310*180 (mm)
N.W.: 0.184 (KG)
G.W.: 0.2 (KG)

Port:FOB Zhongshan

Lead Time :

Quantity(Pieces)	1 - 50	51 - 500	501 - 1000	>1000
Est. Time(days)	5	15	20	To be negotia
